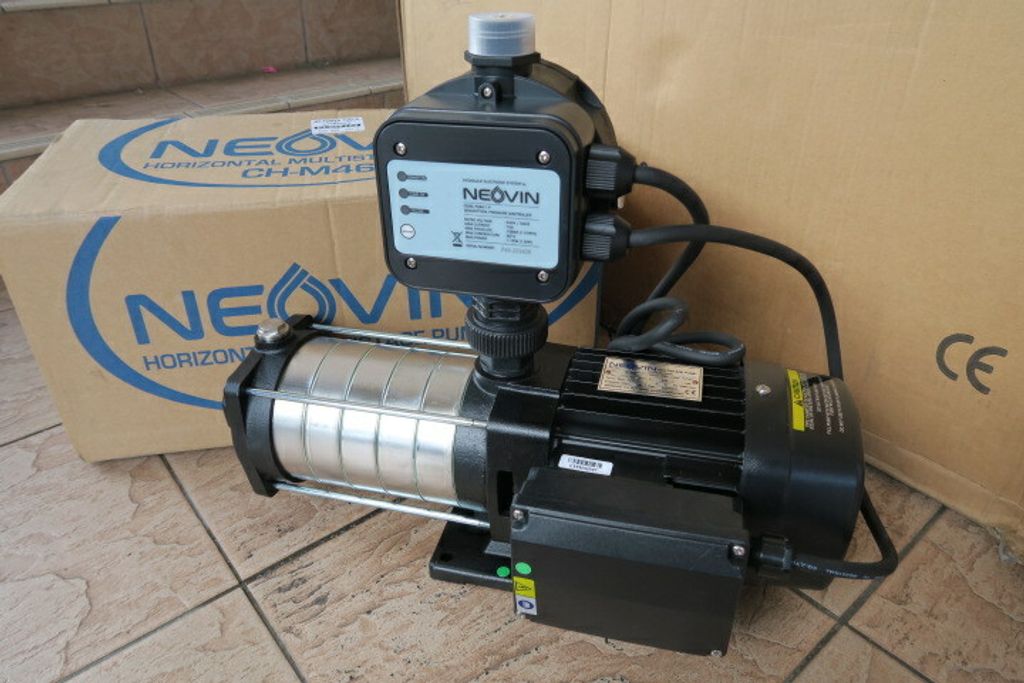

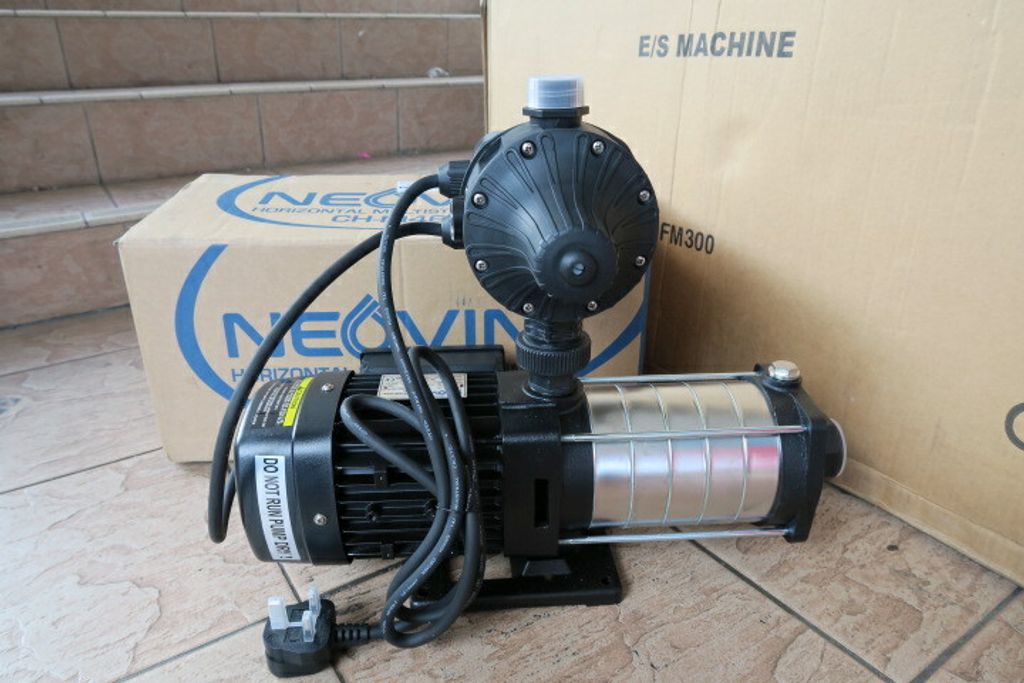

Neovin 1.1kW (1.5Hp) PC Horizontal Multistage Centrifugal Pump
Neovin 1.1kW (1.5Hp) PC Horizontal Multistage Centrifugal Pump..

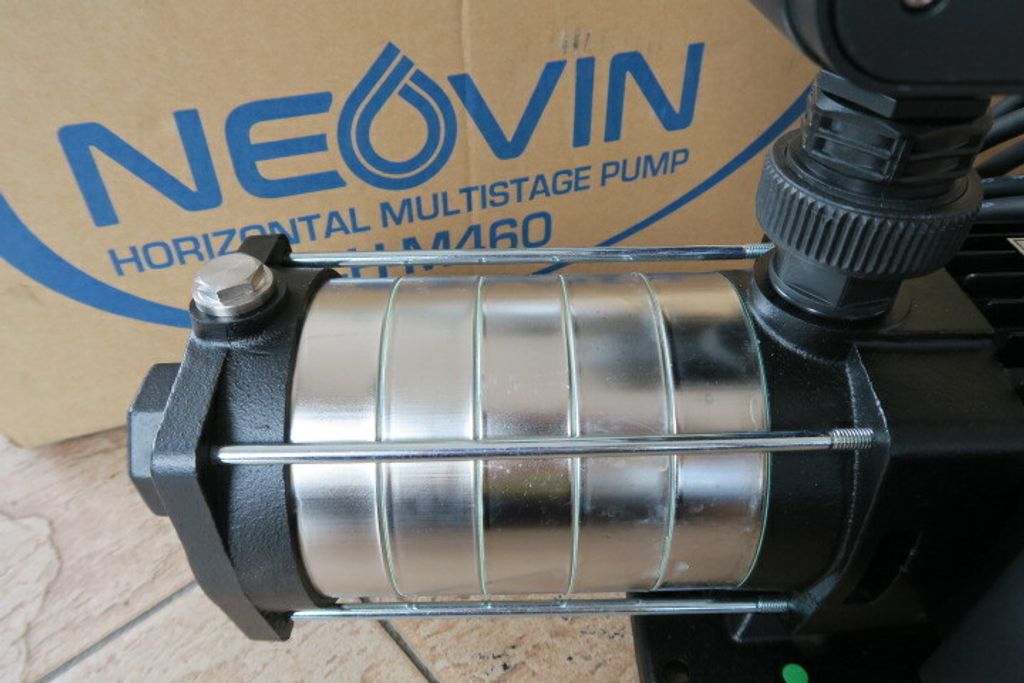

Neovin CH-M Series Horizontal Multistage Centrifugal Pump. CH-M series is segmental multistage stainless steel pump; The material of inlet and outlet is cast iron; the liquid part is made of SUS304,. Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable usage; Applied mechanical seal type ensure watertight in long-time continuous operation. The material of frame is aluminum; it is under low-noise and less-vibration and durability. Insulation class F, protection IPX55, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.
.Pressure boosting for the water on processing line.
.Heating and cooling water on industrial processing line
.Water supply and pressure boosting (drinking water, weak chlorine water)
.Convey thin, clean, non-flammable and non-explosive liquid without solid granules and fibers
.Liquid temperature +5C ~ +60°C
.Max ambiance temperature +50°C
.Max pressure 10 bar
.Maximum inlet pressure is limited by the maximum operating pressure
Motor power 1.1kW (1.5Hp)
Voltage 240V / 50Hz
Inlet size 1-1/4″ BSP (F)
Outlet size 1″ BSP (M)
Rated head 45m
Max. head 58m
Rated flow 4m3/hour (66L/min)
Max. flow 7m3/hour (116L/min)
Max. temperature 70°C
Max. pressure 10 bar
Motor protection IP55
Insulation Class 155 (F)
Warranty 24 months
PRICE RM1,080.00..(Neovin the pump expert)..
