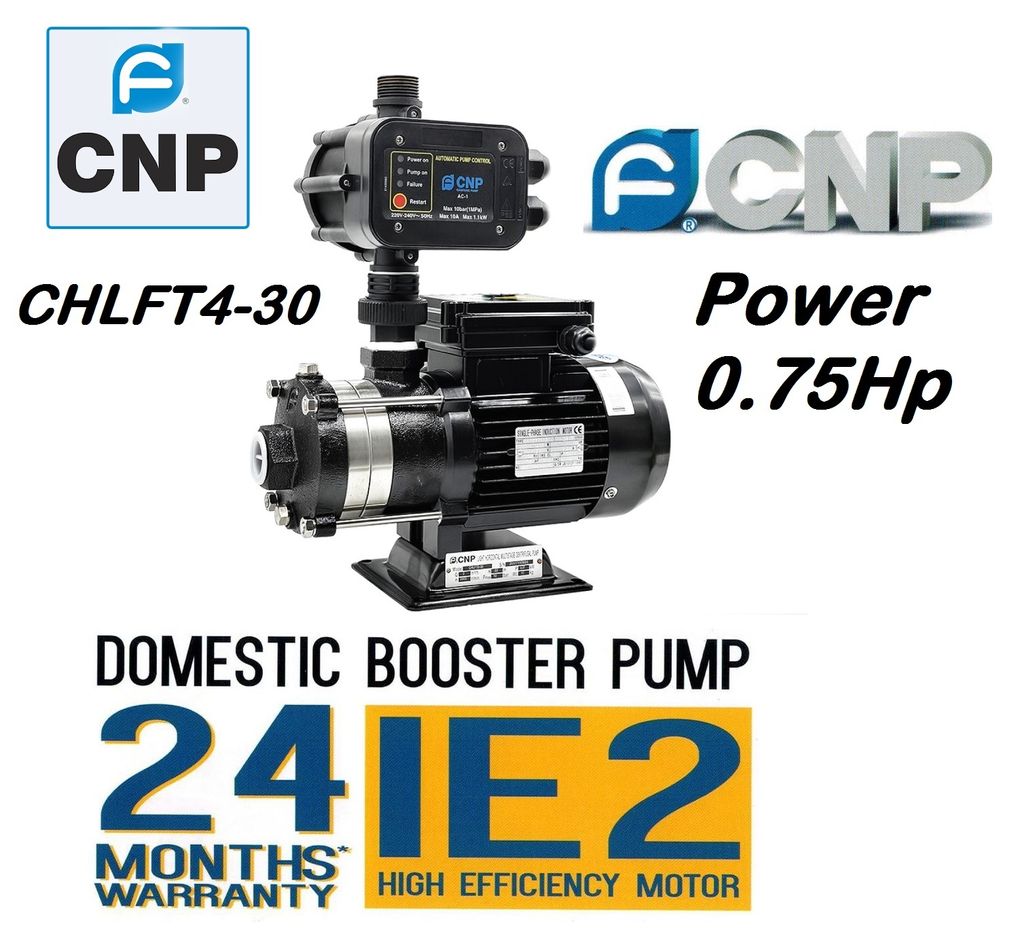

CNP CHLF(T) 4-30 (0.75Hp) Horizontal Multi-Stage Water Booster Pump

RM 1,150.00

CNP CHLF(T) 4-30 (0.75Hp) Horizontal Multi-Stage Water Booster Pump..

Model CHLF(T)4-30

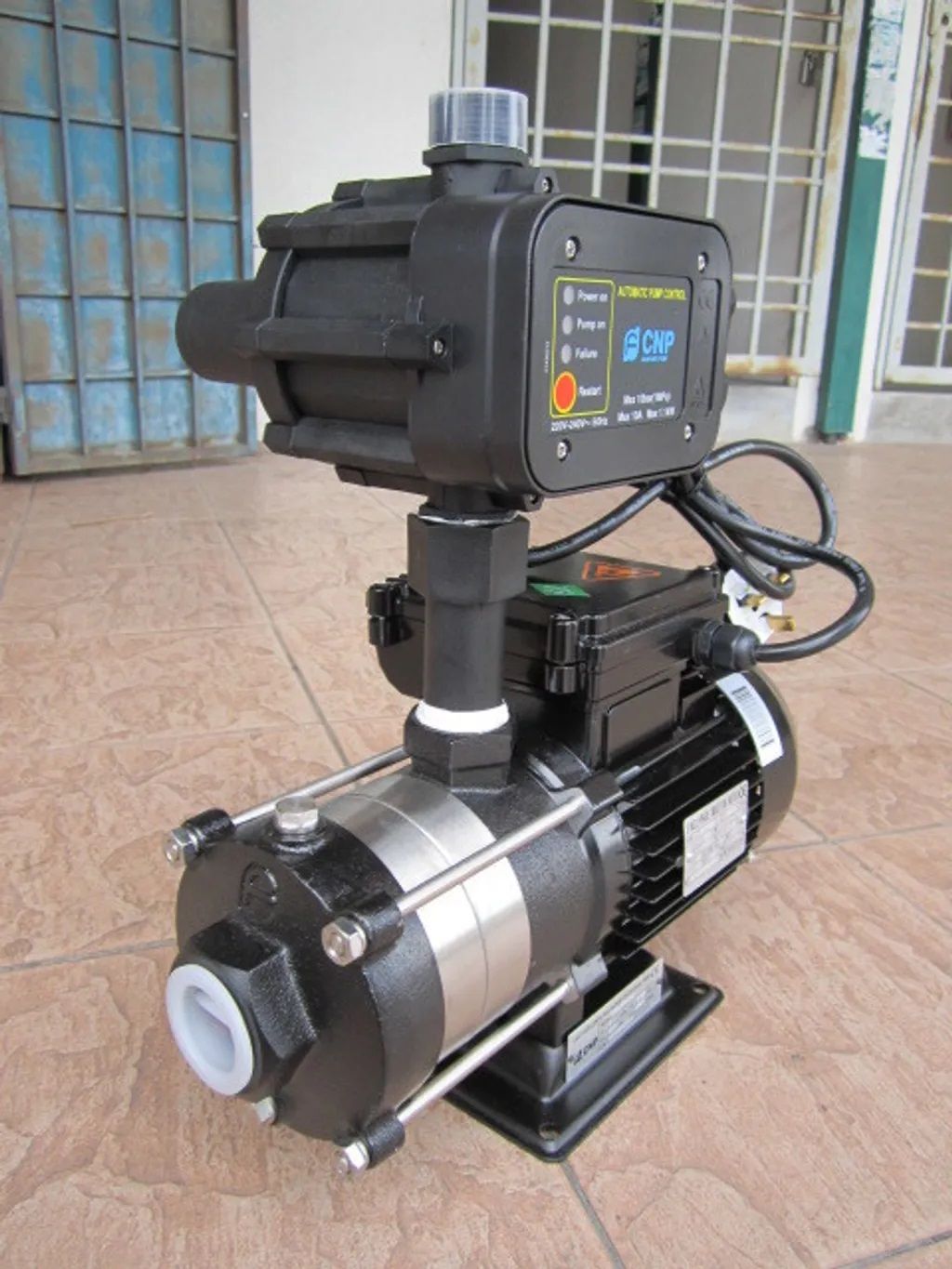

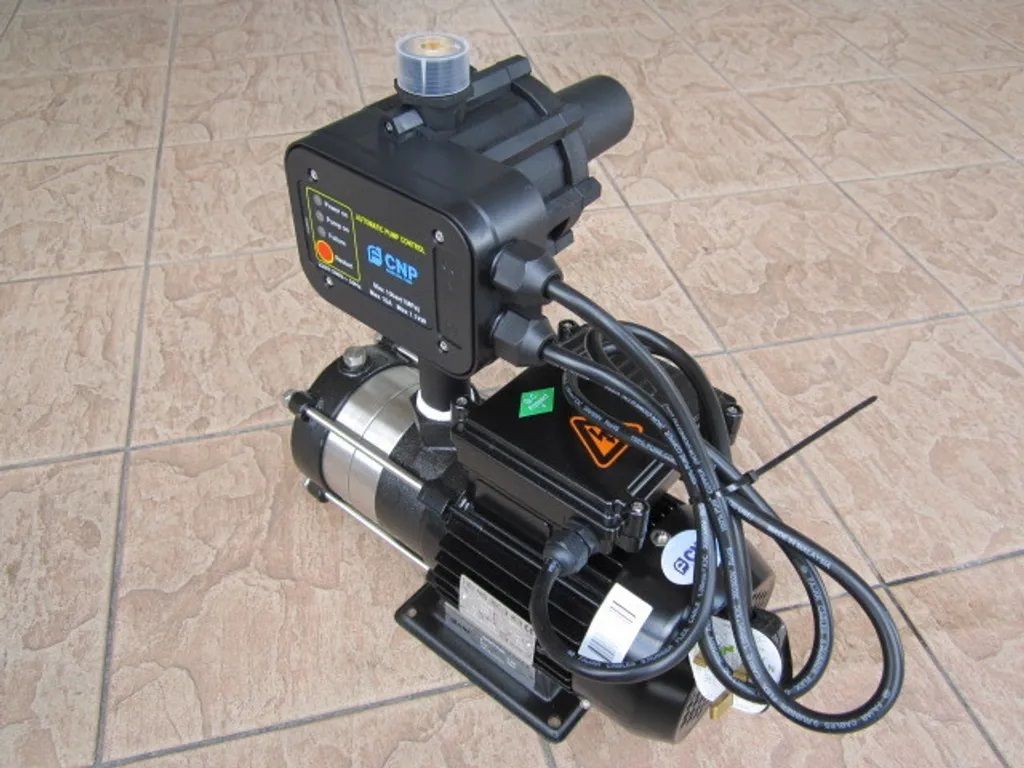

CNP CHLF(T)4-30 horizontal multi-stage centrifugal pump, 230V. The CNP steel pump unit designed for water transfer and pressure boosting in both domestic and industrial applications.


Mainly used for family central air conditioning circulation and industrial liquid transmission.

Such as mineral water, soft water, purification system, such as light oil circulation and pressurization.

.Small central air condition

.The cooling system

.Industrial cleaning

.Purification of water treatment


.Fertilization/measurement system

.Environmental applications

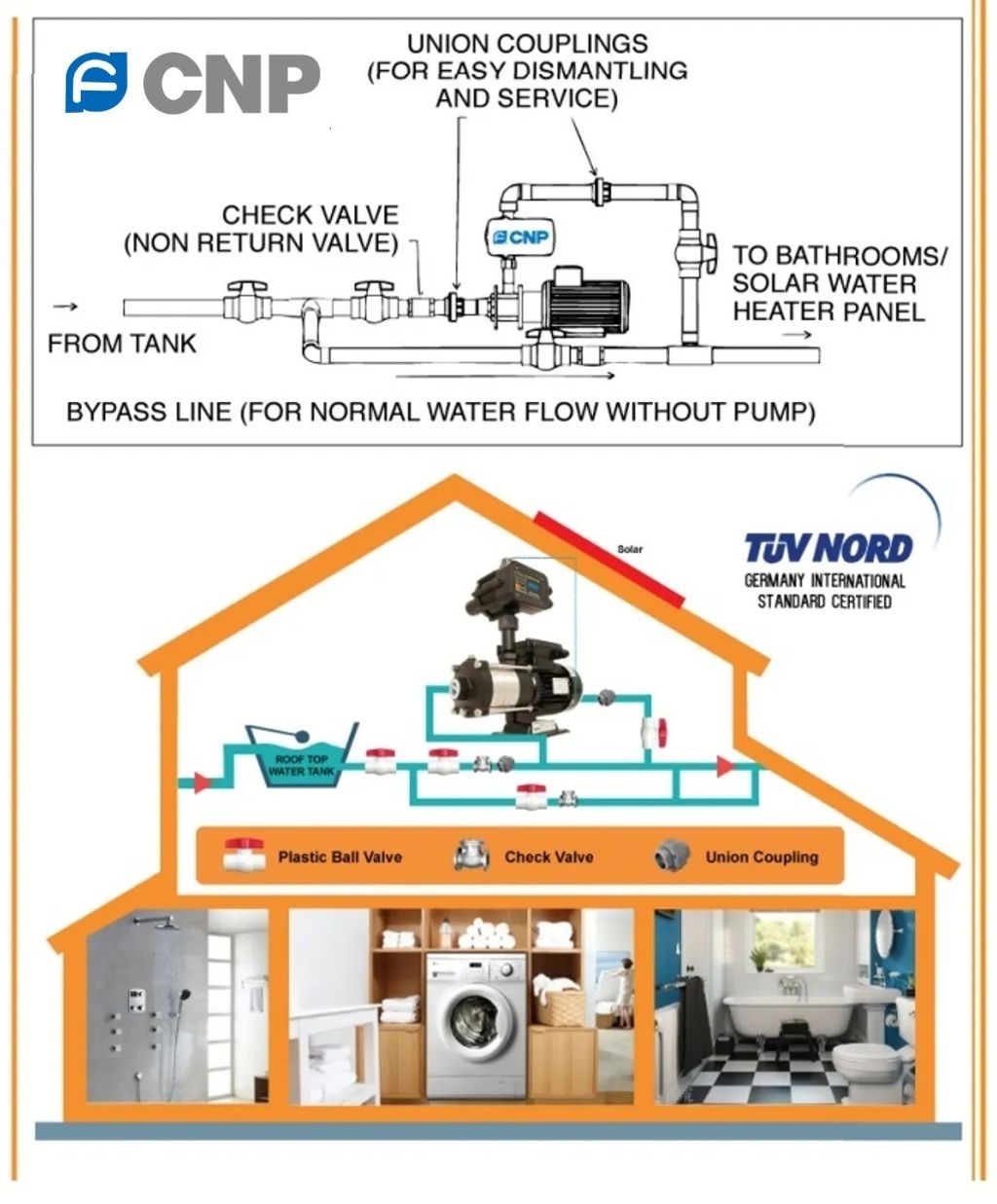

.Domestic booster pump

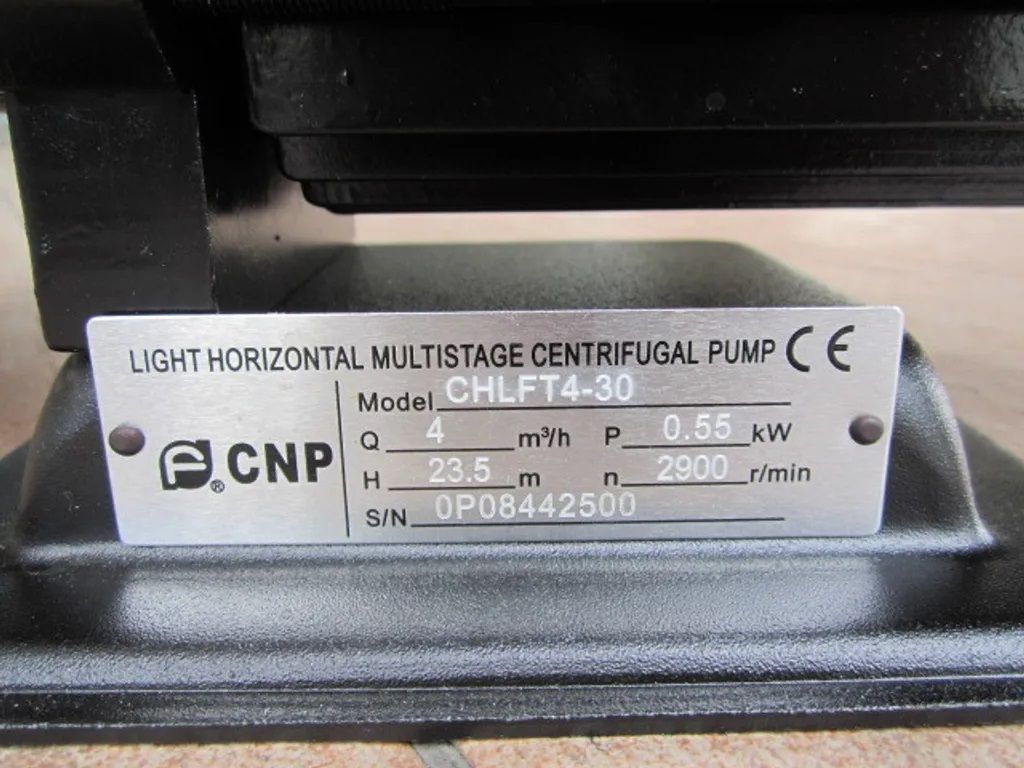

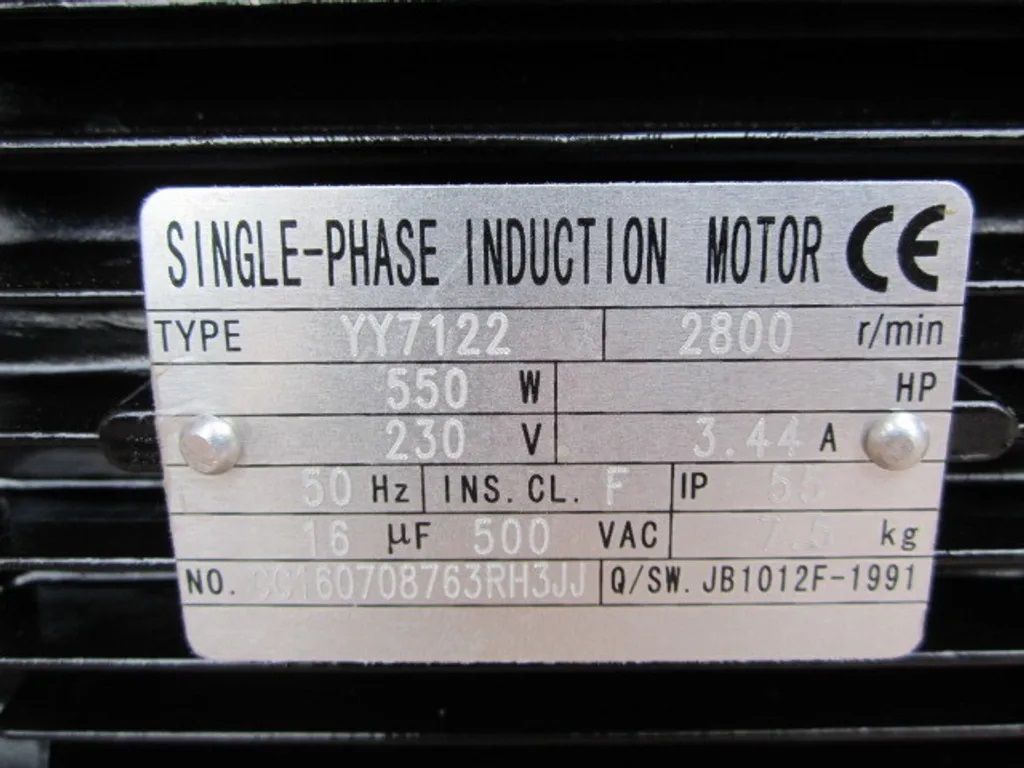

Brand CNP

Model CHLF(T)4-30

Voltage 230V 50Hz

Phase single

Power 0.55kW / 0.75HP

Current 3.44A

Speed 2800rpm

Motor type induction type

Rated flow 4m3/hour / 66L/min

Rated head 23.5mtr

Inlet size 1-1/4-inch

Outlet size 1-inch

Insulation Class F

Protection IP 55

Max. ambient temperature up to +40°c

Max. liquid temperature up to +70

Max. operating temperature 10 bar°

Weight 16kgs

Warranty 24 months against manufacturer defect

PRICE RM1,150.00..(CNP Better Pumps, Superior Quality, Excellent Life)..
