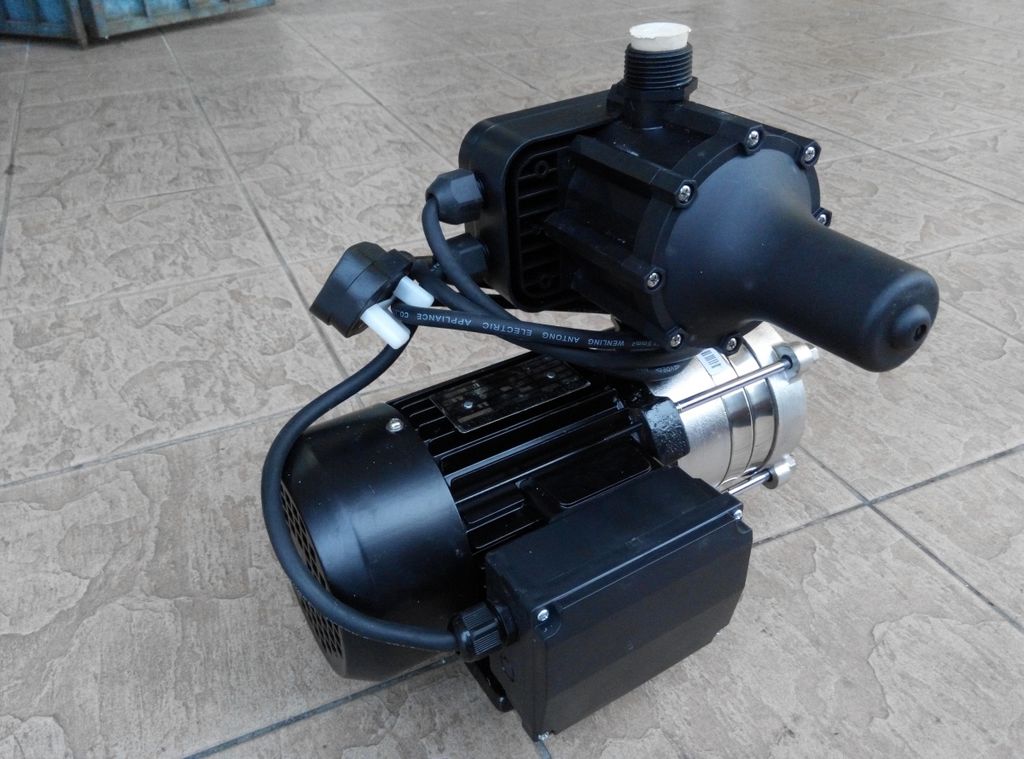

Marlino 0.37kW Stainless Steel Horizontal Multi-Stage Pump

RM 899.00

Marlino 0.37kW Stainless Steel Horizontal Multi-Stage Pump..
Model BWJ2-3
Light-type stainless steel multistage centrifugal pumps are non-self priming pumps absorbing the advanced technology from home and abroad. Adopting standard  motor and alloy mechanical seal, which make the replacement more convenient. The overflowing part is made from stainless steel, applicable for light-corrosion medium. Relying on the high efficiency, energy saving performance, reliable quality, wide usable range, the products are received the great popularity after they have been launched.

**Features**
.The premium hydraulic model and advanced workmanship greatly improve the pumps’ performance and extend the service life.
.Adopting alloy and florin rubber for the mechanical seal, which ensures the pumps’ reliable operation and endures high temperature of transmission  medium.
.As the overflowing part of pump is stamped and welded by stainless steel plate, which is suitable for slightly aggressive liquids.
.Compact design, small in size, light weight, low noise, excellent energy saving performance, easy  to  maintenance.
.Inlet and outlet of the pump stand in the same line with the pump base, which can be used directly in the pipelines.
.Clients can allocate the motor based on their own needs.
.We provide the intelligent protector to avoid dry running, default phase and over loading of the pump to meet customer's demand.

**Working condition**
.Liquid temperature: Normal type 0℃~+68℃, hot water type 0℃~+120℃.
.Ambient temperature: -15℃~+40℃
.The maximum inlet pressure: 1.0 Mpa/10 Bar
.When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select to a driving motor of high-power.

**Application**
.Water supply: water filtering and water delivery in water plants, water delivery for sub-water plants, pressure boost in main pipelines and in high-rise buildings.
.Industrial pressure boost: flow water system, cleansing system, high-pressure washing system, fire extinguishing system.
.Industrial liquid delivery: cooling and air-conditioning systems, boiler water supply, condensation system, machine tool, transmission of the acid and alkali mediums.
.Water treatment (Water purification): ultra-filtration system, reverse osmosis system, distillation system, water treatment system for separator and swimming pool.
.Irrigation: irrigating of crops, spray irrigation and drop irrigation.

**Specifications**
Model BWJ2-30
Voltage 240V 50Hz Single Phase
Power 0.37kW (0.5HP)
Full enclosed ventilating 2P induction motor
Current 2.3A
Flow 2m3/hour (33.4L/min)
Head 22.5m
Motor speed 2850rpm
Protection class IP55
Insulation class F
Weight 12kg
Warranty 1 years

PRICE RM899.00*..(Marlino Water Pumps)..
*Price are inclusive 6% GST.
