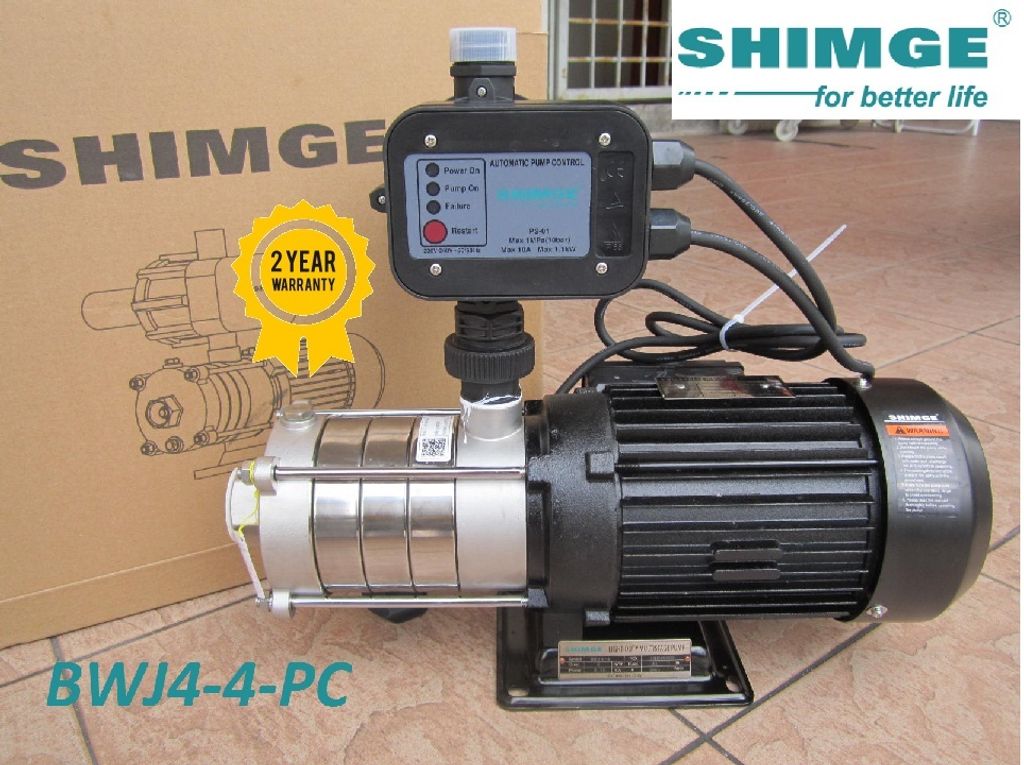

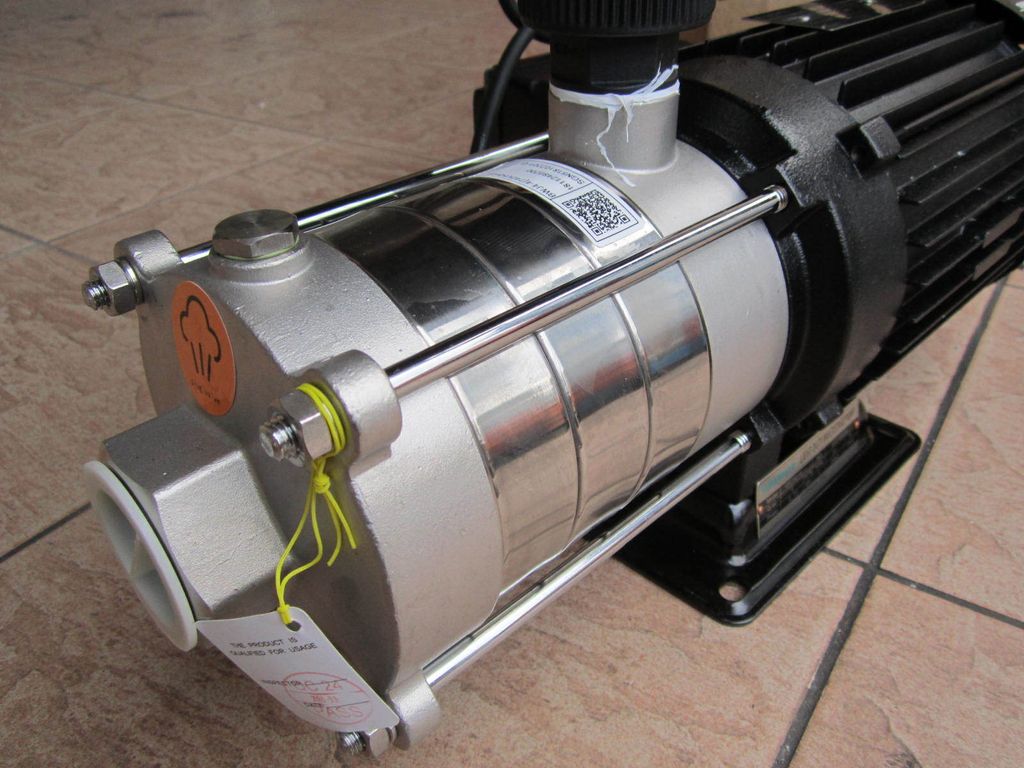

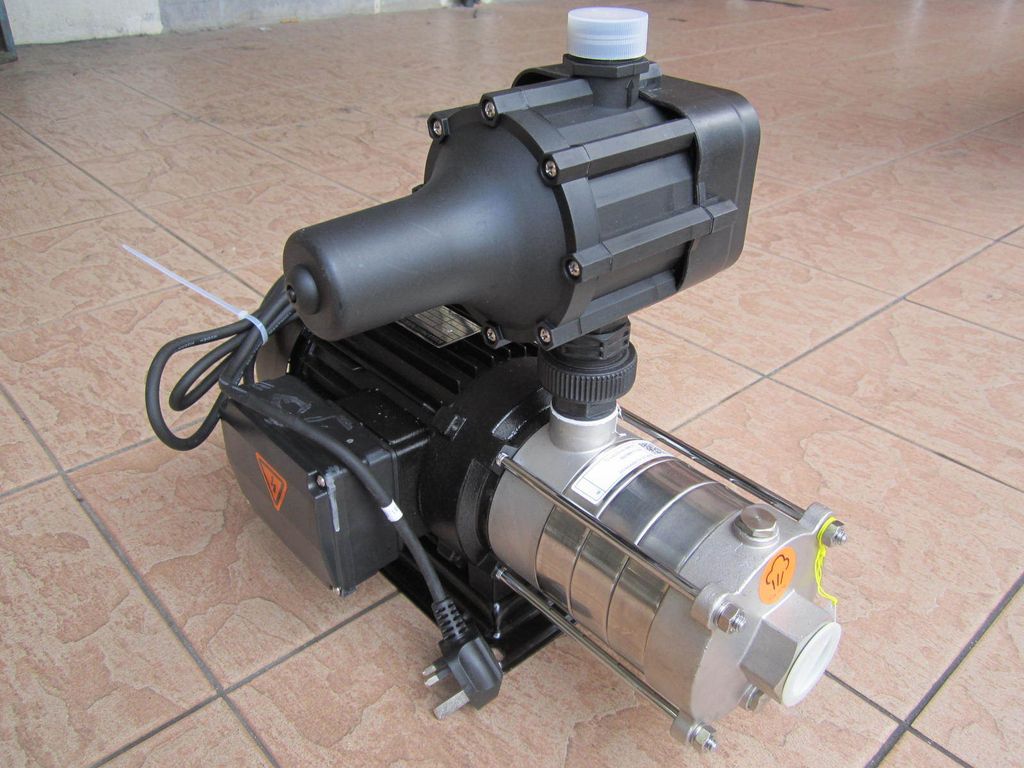

Shimge 0.75kW (1.0HP) Stainless Steel Horizontal Multi-Stage Pump
Shimge 0.75kW (1.0HP) Stainless Steel Horizontal Multi-Stage Pump..
BWJ stainless steel horizontal multistage centrifugal pumps are non-self priming pumps absorbing the advanced technology from home and abroad. They are classified into two kinds: cylinder type and sectional type. They adopt horizontal motor and alloy mechanical seal, which makes the replacement more convenient. The overflowing part of the pump is made of stainless steel 304, applicable for light-corrosion medium. Relying on the high efficiency, energy saving performance, reliable quality, wide usable range, our products receive the great popularity after being launched.
.Temperature range of medium: Normal type 0°C +68°C , hot water type 0°C +120°C
.Maximum ambient temperature: +40 °C
.Maximum working pressure: 10 bar
.When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
.pH: 6.5 to 8.5
.Full-enclosed and ventilating two-pole standard motor
.Protection class: IP55
.Insulation class: F
.Standard voltage (50Hz): Single phase 240V
.Air conditioner system
.Water processing(Water purification)
.Other special applications

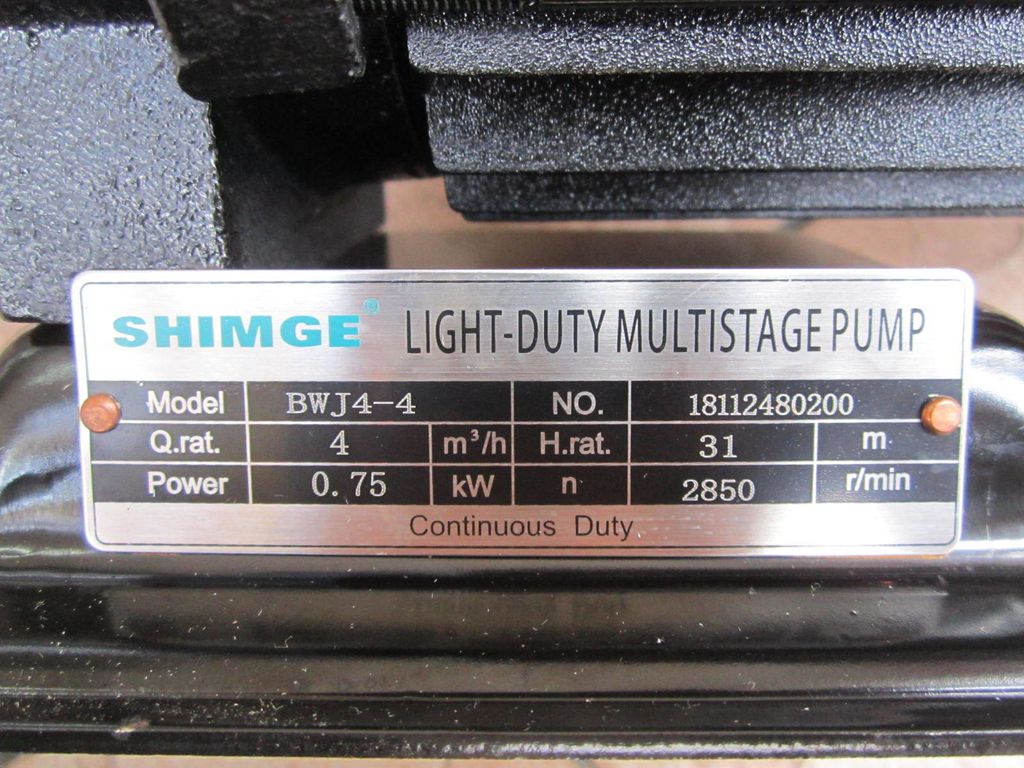

Power 0.75kW (1.0HP)
Rated Flow 4.0m3/hour (66L/min)
Max. Flow 7.0m3/hour (116L/min)
Rated Head 31mtr
Max. Head 38mtr
Motor Power 0.75kW (1.0HP)
Max. Efficiency 59%
Inlet G 1.25" (32mm)
Outlet G 1" (25mm)
Noise Level 56 dB(A)
Insulation Class F
Warranty 24 months
PRICE RM999.00..(Shimge for better life)..
